微纳米结构可用于各种应用，结构的多样性与微技术的潜在应用领域一样多。其中一些结构是从自然界复制而来的，例如蛾眼模型或鲨鱼皮模型，用于减少光学系统中的反射或很大程度地减少摩擦损失。
借助于微精密零件，在医学工程领域可以创造出新的分析方法，从而使检测更快速、更经济地；可以根据客户的需要进行定制散射器，从而为照明设计的新思路打开了大门。还有许多其他的例子可以说明微结构和纳米结构是如何提高性能。
我们可提供各类微结构的Nickel shims(镍模板/模具)。这些模具可用于科研和生产及工艺的开发改进。
标准的批量制作完成的模具/模板可使用户以一种非常经济的方法来验证结构或设备及工艺。
我们的标准模具包括：
- 抗反射模具（HT-AR）:HT-AR-02, HT-AR-06
- 近红外抗反射模具(HT-NIR)
- 微透镜模具(HT-MLA)
- 光散射模具（线性、 圆形）(HT-ED)
- 衍射光栅模具(HT-DG)
- 防眩光模具(HT-AG)

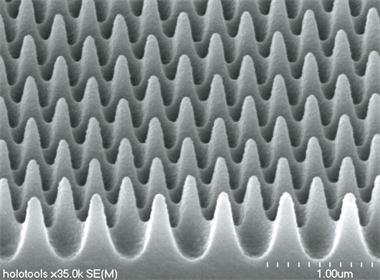

抗反射结构模板 Antireflective Structures Molds
Product | Description | Mold Size Active size | Image |
HT-AR-02XS | Optical function: AR High
Performance
Grating type: Grating type
Pitch: 300nm
Average depth: >350 nm
Peak-to-peak: 290 nm
Material: Nickel
Mold thickness ① : 300 μm
Expected %R PMMA ② : Less
than 0.9% | 40 x 40 mm2 ①
20 x 20 mm2 ① |  |
HT-AR-02S | 60 x 60 mm2 ①
40 x 40 mm2 ① |
HT-AR-02A | Optical function: AR High
Performance
Grating type: Grating type
Pitch: 250nm
Average depth: >350 nm
Peak-to-peak: 290 nm
Material: Nickel
Mold thickness ① : 300 μm
Expected %R PMMA ② : Less
than 0.2% | 120 x 120 mm2 ①
100 x 100 mm2 ① |
HT-AR-02C | 250 x 250 mm2 ①
200 x 200 mm2 ① |
HT-AR-06B | Optical function: AR High
Performance
Grating type: Hexagonal Array
Pitch: 300 nm
Average depth: 300 nm
Peak-to-peak: 345 nm
Mold thickness: 100 μm – 300 μm
Expected %R PMMA: Less
than 0.6% | 70 x 70 mm2 50 x 50 mm2 |
HT-AR-06D | 120 x 120 mm2
100 x 100 mm2 |
近红外抗反射模板 Near-Infrared-AR-High Performance Molds
Product | Description | Mold Size Active size | Image |
HT-NIR-02 | Grating type: Hexagonal Array
Pitch: 500 nm
Average depth: > 700 nm
Material: Nickel
Expected %R acrylic polymer
(@900nm): Less than 0.2%
Expected %R acrylic polymer
(@1500nm): Less than 0.3%
Mold thickness ① : 300 μm | 100 x 100 mm2
① 80 x 80 mm2 ① |  |

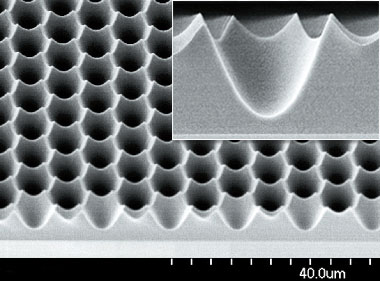

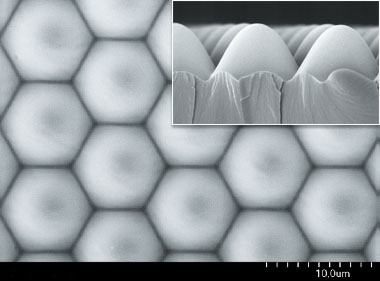

微透镜结构模板 Microlens Arrays Molds
Product | Description | Mold Size Active size | Image |
HT-MLA-09B | Structure type: Microlens Array
Structure geometry: Hexagonal /
Honeycomb
Lens diameter: 9 μm
Average lens height: 5.5 μm
Material: Nickel
Mold thickness: 100 μm – 300 μm | 70 x 70 mm2
50 x 50 mm2 |
 |
HT-MLA-09D | 120 x 120 mm2
100 x 100 mm2 |

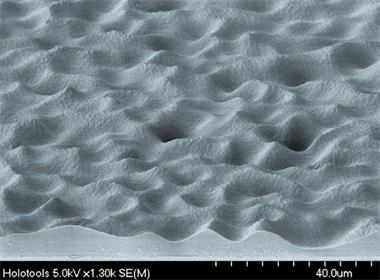

光散射微纳结构模板 Engineered Diffusers Molds
Product | Description | Mold Size Active size | Image |
HT-ED-L80B | Structure type: Engineered Diffuser
Output type: Linear diffusion
Diffusion angles (FWHM) ① : 1° / 80°
Material: Nickel
Mold thickness: 300 μm | 70 x 70 mm2
50 x 50 mm2 |  |
HT-ED-L80D | 120 x 120 mm2
100 x 100 mm2 |
HT-ED-C25B | Structure type: Engineered Diffuser
Output type: Circular diffusion
Diffusion angles (FWHM) ① : 25°
Material: Nickel
Mold thickness: 300 μm | 70 x 70 mm2
50 x 50 mm2 |  |
HT-ED-C25D | 120 x 120 mm2
100 x 100 mm2 |

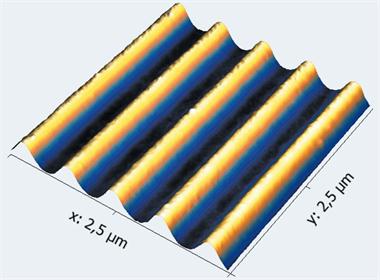

衍射光栅结构模板 Diffraction Grating Molds
Product | Description | Mold Size Active size | Image |
HT-DG-L500 | Grating type: Linear Grating
Profi le shape: Sinusoidal
Pitch: 500 nm
Average depth: 250 nm
Material: Nickel
Mold thickness ① : 300 μm | 100 x 100 mm2 ①
80 x 80 mm2 ① |  |
HT-DG-C500 | Grating type: Crossed Grating
Profi le shape: Sinusoidal
Pitch: 500 nm
Average depth: 250 nm
Material: Nickel
Mold thickness ① : 300 μm | 100 x 100 mm2 ①
80 x 80 mm2 ① |  |

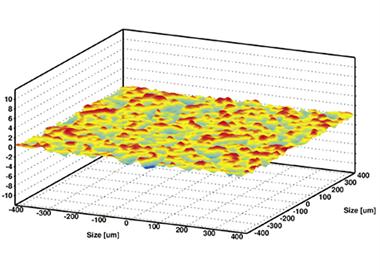

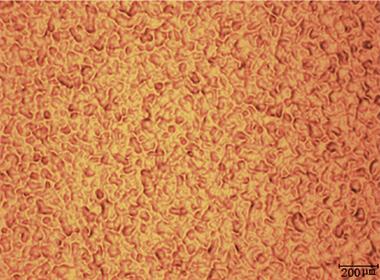

防眩光模板 Anti-glare molds
Product | Description | Mold Size Active size | Image |
HT-AG-01 | Optical function: Suppression of
specular reflections
Diffusion angle (FWHM) ① : about 1°
Material: Nickel
Mold thickness: 300μm +/-5%
Haze value ③ / ④ : 2,23 % +/-0,05 %
Transmittance ③ / ④ : 92,2 % +/-
0,05 %
Structure amplitude: up to 4μm | 100 x 100 mm2
80 x 80mm2 |
 |
① Customised sizes and thicknesses upon request
② averaged visual specular single-side reflectance.
③ Embossed into a material with an optical index of refraction of 1.5
④ Measured with Haze-gard plus from Byk-Gardener acc. to norm ASTM D1003
