Crystallographic
Syngony | Cubic |
Symmetry Class | F43m |
Lattice Constants | a = 6.483 Å |
Optical
Refractive Index at n10.0 | 2.649 |
Refractive Index at n20.0 | 2.610 |

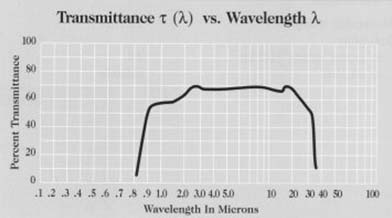

Transmission Range, microns | 2 - 25 |
Absorbance μ(λ)，cm -1 | |
at 10 microns | 0.167 |
Thermal
Thermal Linear Expansion, ℃-1 for 0-30 ℃ | 4.5 x 10-6 |
Thermal Conductivity, W/(m * ℃) | 4.10 |
Specific Heat Capacity, J/(kg * ℃) | 0.209 |
Melting Point, ℃ | 1092 |
Mechanical
Density, g/cm3 | 5.86 |
Young Modulus (E), Pa | 52 x 109 |
Poisson Ratio | 0.41 |
Chemical
Molecular Weight | 240.01 |
Solubility | |
in water, gram/100 cm3 | insoluble |
Ref. Index vs. Wavelength λ
| Wavelength, Microns | Refractive Index |
6.0 | 2.656 |
8.0 | 2.654 |
10.0 | 2.649 |
12.0 | 2.644 |
14.0 | 2.637 |
16.0 | 2.629 |
18.0 | 2.629 |
20.0 | 2.610 |
22.0 | 2.598 |
Custom sizes and specifications are available on request.
